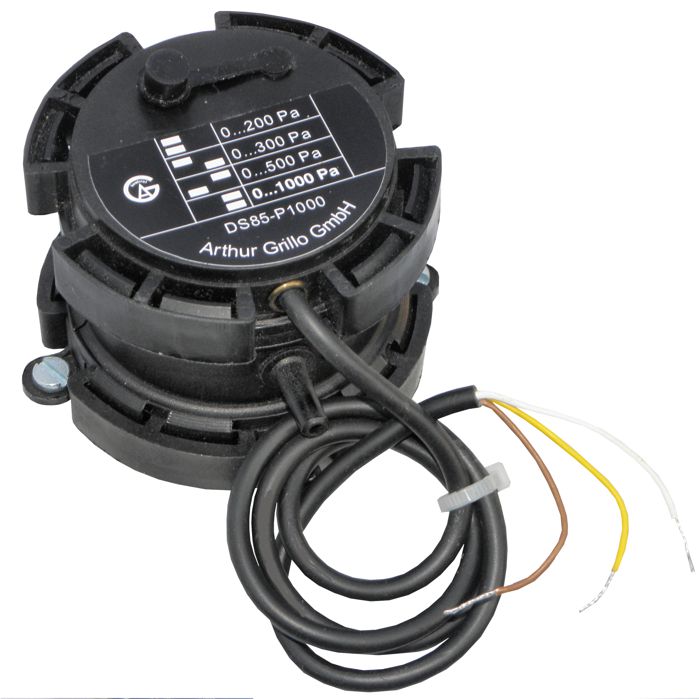

for measuring draught, pressure or differential pressure.
Ranges: 0 ... 200 Pa
Ranges selectable by DIP-switch.
Basic setting:
Range 1: 0 ... 200 Pa
Range 2: 0 ... 150 Pa
Range 3: 0 ... 100 Pa
Range 4: 0 ... 50 Pa
Output: 0 ... 10 V
Supply voltage: 15 ... 30 Vdc or 24 Vac ±15 %
3-wire cable, length 50 cm, IP 65.
Case: plasstic for wall mounting,
diameter 70 mm, depth 50 mm.
